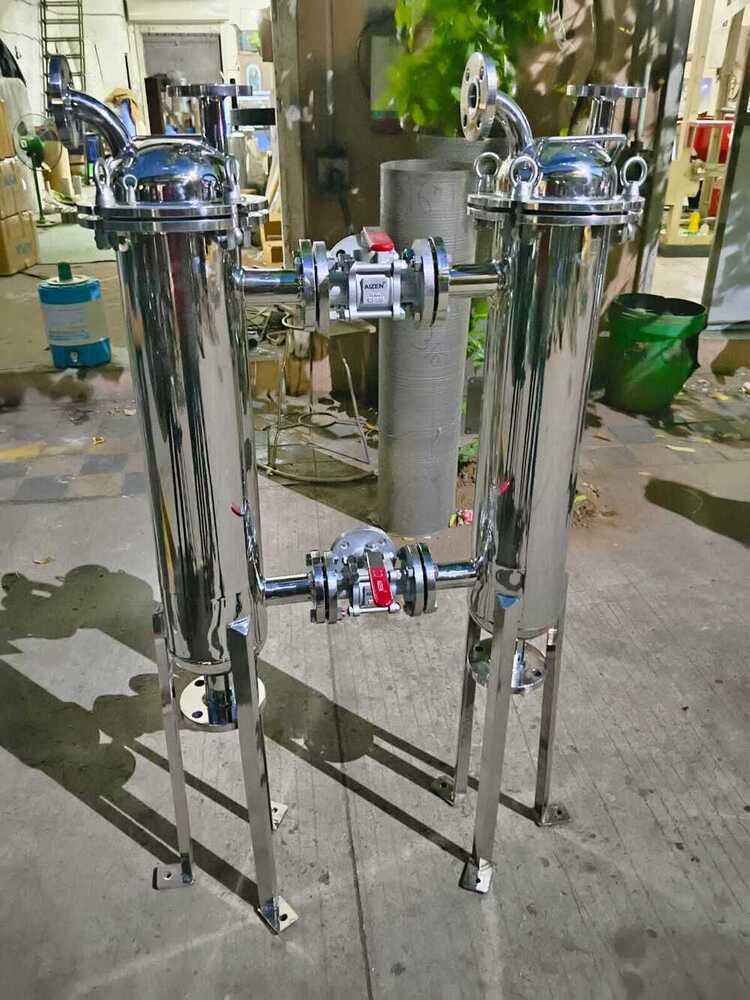

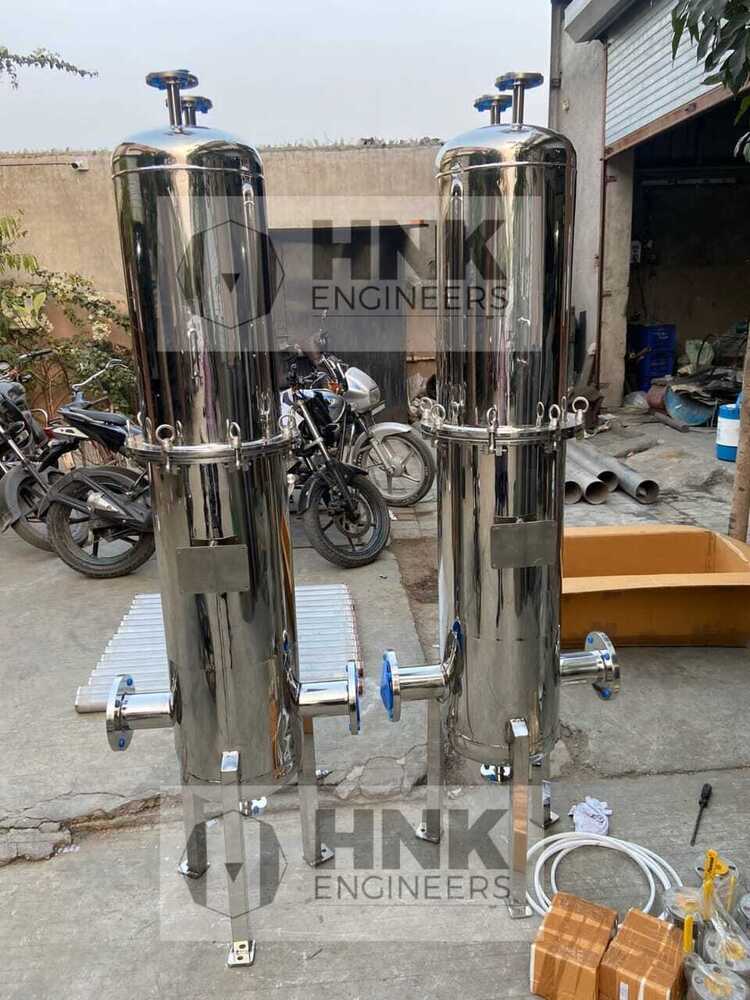

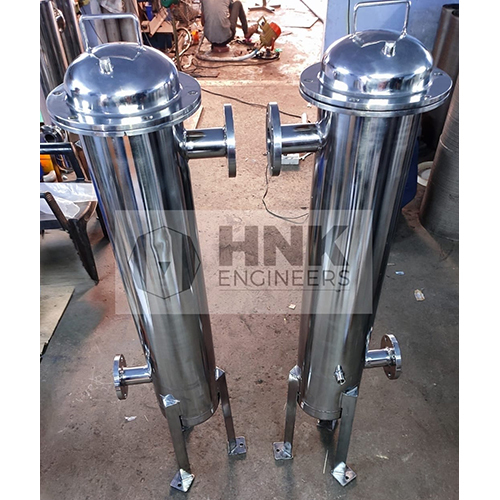

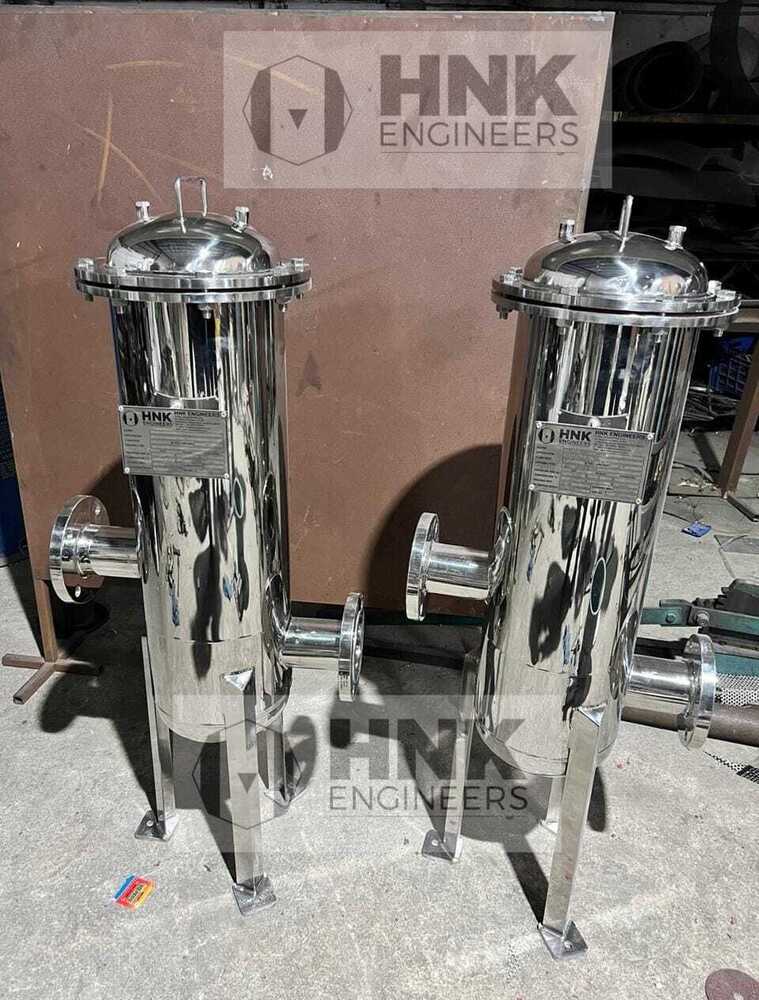

SS Process Filter Housing

Product Description

Stainless Steel (SS) Process Filter Housing is a key component in filtration systems used in various industries, such as food and beverage, pharmaceuticals, chemical processing, water treatment, and petrochemical applications. These housings are designed to hold filter elements securely while allowing for the filtration of liquids or gases to remove particles, contaminants, and impurities.

Key Features of SS Process Filter Housings:

1. Material:

   • Made from high-quality stainless steel (typically 304 or 316L grade), which provides excellent resistance to corrosion, oxidation, and rust. This makes them ideal for processing and filtration applications where hygiene and durability are important.

2. Design:

   • The housing typically features a cylindrical or tubular shape with inlet and outlet ports for fluid flow. Some housings are designed for vertical or horizontal mounting, depending on the filtration system's requirements.
   • The flanged or threaded connections for easy installation and maintenance.
   • Pressure rating: SS filter housings are built to withstand high pressures, typically ranging from 10 bar (145 psi) to over 30 bar (435 psi), depending on the design and application.

3. Filter Element:

   • The housing contains a filter element or cartridge, which is the core of the filtration process. The element can be made of various materials such as pleated paper, stainless steel mesh, polypropylene, or activated carbon, depending on the application.

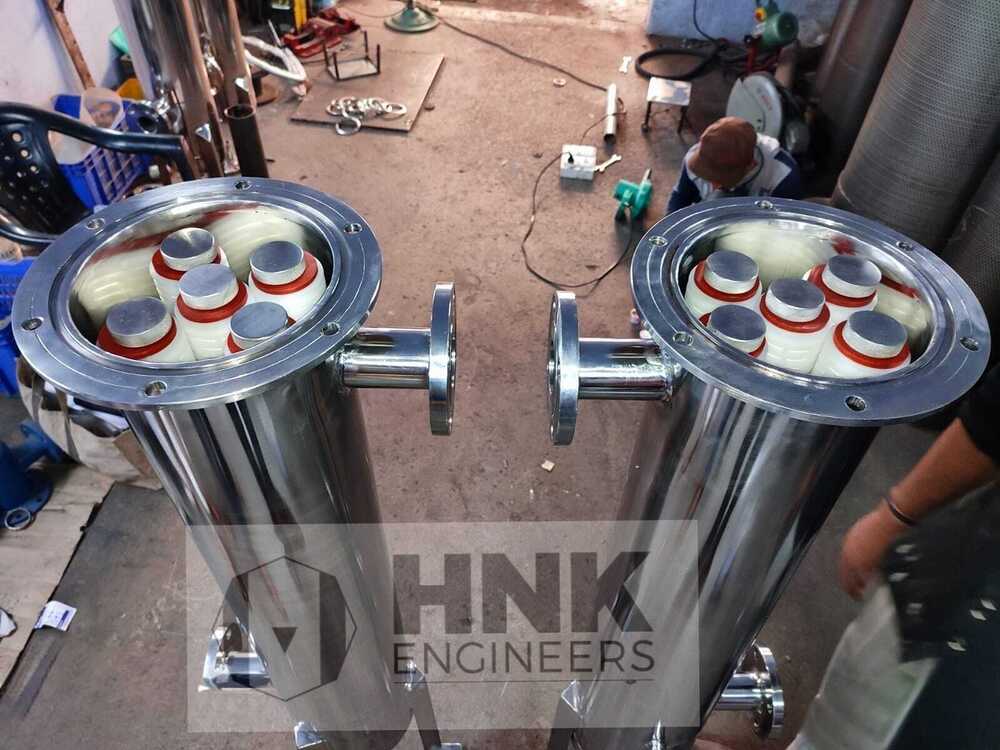

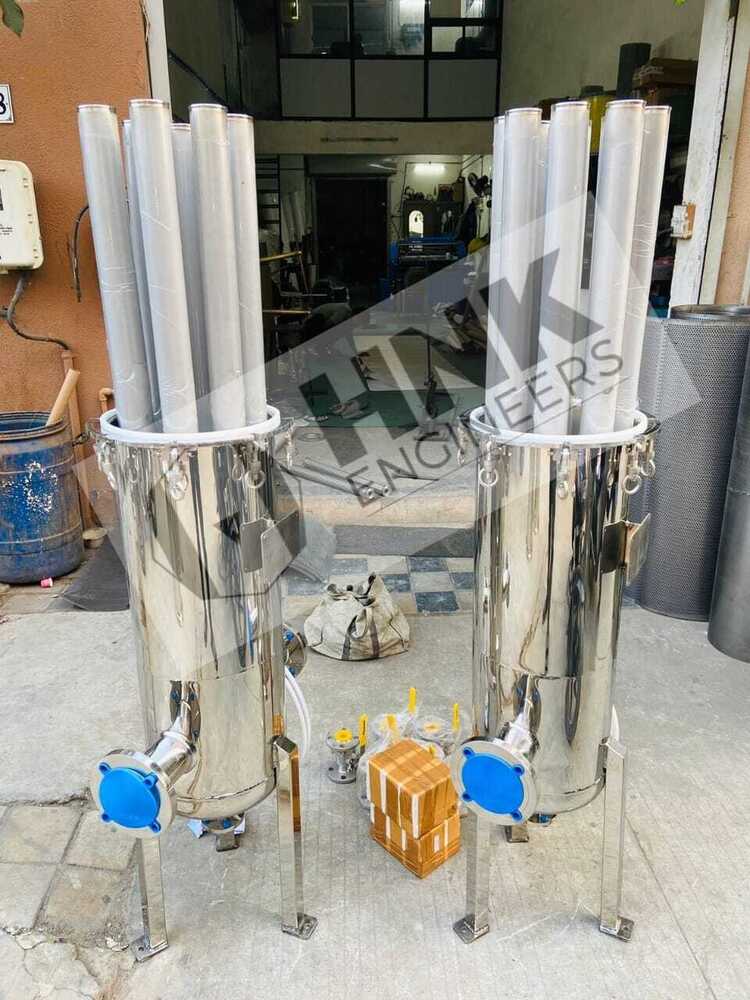

   • The filter element is usually replaceable, and some filter housings can accommodate multiple elements, depending on the desired filtration capacity.

4. Seals & Gaskets:

   • The filter housing is sealed with high-quality gaskets or O-rings (made from materials like PTFE or silicone) to ensure there are no leaks during operation and to maintain the integrity of the filtration process.

5. Sanitary Design (for food/pharmaceutical industries):

   • In industries requiring high cleanliness standards, SS filter housings are often sanitary or ASME BPE compliant, meaning they meet strict standards for cleanliness and contamination control. These housings are designed for easy cleaning and sanitization, often including features like smooth surfaces and no dead legs (areas where fluid can stagnate).

6. Applications:

   • Liquid Filtration: Used for filtering water, oils, chemicals, food products, etc.
   • Gas Filtration: Employed in applications where gases or air need to be purified.
   • Pre-filtration: Typically used in larger filtration systems as a pre-filter to protect downstream equipment.
   • Pharmaceuticals and Bio-processing: In these sectors, stainless steel filter housings are used to meet strict hygiene and safety regulations.

7. Sizes and Configurations:

   • SS process filter housings are available in a variety of sizes and configurations (single, multi-bag, or multi-cartridge) to meet different flow rate and filtration requirements.

8. Maintenance:

   • These housings are designed for easy maintenance with quick-release clamps or bolts that allow for rapid access to the filter elements.
   • Many housings feature a vent valve for releasing trapped air or gas during operation and a drain valve for removing residual liquid when the system is shut down.

Common Applications of SS Process Filter Housings:

• Water treatment (municipal or industrial)
• Pharmaceutical filtration (sterile filtration)
• Food and beverage industry (e.g., juice or filtration)
• Oil and gas (filtration of lubricants and fuels)
• Chemical processing (filtering solvents, acids, or other chemicals)

Advantages:

• Corrosion resistance: The use of stainless steel ensures the filter housing is durable and resistant to corrosive substances.
• Long service life: Due to the robust construction and materials, SS filter housings offer long-lasting performance with minimal maintenance.
• Versatility: They are adaptable for a wide range of filtration applications in various industries.
• Ease of cleaning: Especially in industries requiring frequent sanitation, these housings are designed for simple and efficient cleaning.
