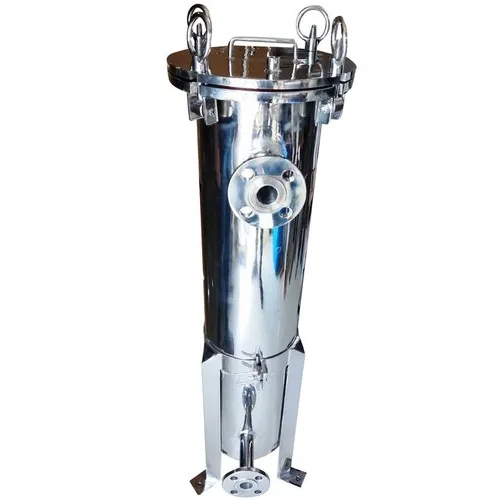

SS Cartridge Filter Housing

About SS Cartridge Filter Housing

SS316 Cartridge Filter Housing is a type of filtration system designed to house cartridge filters made of SS316 stainless steel. These filter housings are commonly used in a wide range of industries to remove particulates and contaminants from liquids and gases. The housing itself is made from SS316 stainless steel, which is highly resistant to corrosion and high temperatures, making it ideal for demanding environments.

Here's a detailed breakdown of what SS316 cartridge filter housings contain:

1. Material: SS316 Stainless Steel

• SS316 (also known as AISI 316) is a high-quality, corrosion-resistant stainless steel alloy that contains:
  • Iron (Fe) as the base metal.
  • Chromium (Cr) (16-18%) for corrosion resistance.
  • Nickel (Ni) (10-14%) for strength and ductility.
  • Molybdenum (Mo) (2-3%) for improved resistance to pitting and crevice corrosion, particularly in chloride environments.
• Low Carbon Content: SS316L (low-carbon version) may also be used for applications requiring welding without risking carbide precipitation.

SS316 is particularly known for its resistance to harsh chemicals, high-temperature environments, and corrosion, making it ideal for industrial filtration, pharmaceutical, food and beverage, and water treatment applications.

2. Key Components of SS316 Cartridge Filter Housing

The filter housing consists of several critical components that together make the system durable, functional, and leak-resistant:

• Housing Body: The main casing of the filter housing is made of SS316 stainless steel, which provides structural strength and resistance to corrosion. The body typically has a cylindrical shape to accommodate the filter cartridges inside.

• End Caps: The top and bottom caps of the housing, also made of SS316, provide sealing and mounting for the filter cartridge. The end caps are designed to ensure a leak-proof seal when the housing is in operation.

• Cartridge Holders or Support Basket: These are used to securely hold the filter cartridge(s) in place inside the housing. They may be designed for single or multiple cartridges, depending on the application. For multiple cartridge designs, there are often internal support baskets or grids to hold each cartridge securely.

• O-Rings or Seals: Made of elastomers such as EPDM, Viton, or Silicone, these seals are placed between the housing and the filter element or at the points where the housing lid or end caps are secured to ensure a leak-free connection. The type of O-ring depends on the process fluid and operating conditions.

• Pressure Relief Valve: Some SS316 filter housings include a pressure relief valve to release pressure in case the filter becomes clogged or the pressure exceeds a set limit. This helps to prevent damage to the housing and ensures safe operation.

• Drain and Vent Valve: A drain or vent valve is used to empty or vent the housing, which is especially important when replacing filters or cleaning the system.

• Inlet and Outlet Ports: The ports on the filter housing allow fluid to enter and exit the housing. These ports may be designed with flanged, threaded, or quick-connect fittings, depending on the specific application and installation requirements.

• Clamps or Bolts for Housing Lid: The lid or top section of the housing is often secured with either clamps or bolts to provide a tight, secure seal. Clamps are commonly used in sanitary designs for ease of opening and closing, while bolted lids are typically used in higher-pressure systems for added security.

3. Filter Cartridges (Not Part of the Housing but Integral to the System):

The SS316 filter housing is designed to house filter cartridges, which can be made from a variety of materials depending on the filtration requirements. Common filter media types include:

• Stainless Steel Mesh or Sintered Metal Filters: For high-durability filtration, often used in high-pressure or high-temperature applications. These filters are available in various mesh sizes, such as 10 microns, 20 microns, 50 microns, etc.
• Pleated Paper or Non-Woven Fabric Filters: Used for finer filtration, often in applications where higher particle retention is required.
• Activated Carbon or Resin-Based Filters: For absorbing specific contaminants or chemicals.
• Polypropylene or Nylon Filters: Common in water filtration applications, for removing particulates or impurities from liquids.

4. Design Features:

• Single or Multi-Cartridge Housing: SS316 filter housings can be designed for a single filter cartridge or multiple cartridges depending on the required flow rate and filtration capacity. Multi-cartridge housings may have a parallel or serial arrangement of cartridges.
• Top-Mounted or Bottom-Mounted Inlet/Outlet Ports: The inlet and outlet can be located at the top or bottom of the filter housing, based on the application and flow direction.
• Compact or High-Capacity: Some SS316 filter housings are compact for smaller filtration needs, while others are designed to handle large volumes of fluid or gas in industrial processes.

5. Advantages of SS316 Cartridge Filter Housings:

• Corrosion Resistance: SS316 excellent resistance to corrosion, especially in aggressive environments, makes it suitable for use with a wide range of chemicals, acids, and other harsh substances.
• Durability: The strength of SS316 makes these housings highly durable and capable of handling high-pressure and high-temperature environments without degradation.
• Hygienic and Easy to Clean: SS316 is non-reactive, which makes these housings suitable for sanitary applications (e.g., food, beverage, pharmaceutical) where hygiene is critical. The smooth surface also makes cleaning easier.
• Long Service Life: SS316 filter housings are built to last, providing reliable and long-term filtration performance with minimal maintenance.
• Versatility: Suitable for both liquid and gas filtration applications, SS316 cartridge filter housings can be used in a wide range of industries, including water treatment, pharmaceuticals, food and beverage, chemical processing, and oil & gas.

6. Applications of SS316 Cartridge Filter Housings:

• Water Treatment: Filtration of water in industrial, municipal, and commercial systems to remove particulates, sediments, and contaminants.
• Chemical Processing: Used for filtration of chemicals, solvents, and oils, where the housing needs to resist corrosion and chemical attack.
• Pharmaceutical and Biotechnology: For sterile filtration of solutions, ensuring that the final product is free of particles and microbial contamination.
• Food & Beverage: In beverage production (e.g., , juice, soft drinks) or for food processing, where the housing meets hygiene and cleanliness standards.
• Oil & Gas: Filtration of lubricants, fuels, and other fluids used in oil and gas operations, often under high-pressure conditions.
• Industrial Applications: In manufacturing processes where contamination control is necessary, such as in paint production, coatings, or in any application where particle removal is critical.
